Switching Converter, SMPS Transformers
Use the filters and product table below to compare Switching Converter, SMPS Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
760895631XFMR RES CONV AC/DC 500UH TH |
2,753 | - |
|
Datasheet | WE-LLCR | Tray | Active | For AC/DC Converters | Resonant Converters | - | - | 360 ~ 400V | - | 4000Vrms | 500µH @ 100kHz | 70 ~ 120kHz | -40°C ~ 125°C | - | - | Through Hole | 1.692" L x 1.732" W (43.00mm x 44.00mm) | 1.181" (30.00mm) | 1.692" L x 1.732" W (43.00mm x 44.00mm) | - |
|
750316022XFMR FLYBACK AC/DC CONV 3.3MH SM |
2,104 | - |
|
Datasheet | MID-OLLT | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | On Semiconductor | 140 ~ 380V | 20V @ 20mA | 1500Vrms | 3.3mH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.500" (12.70mm) | 0.699" L x 0.530" W (17.75mm x 13.46mm) | - |
|
750341657XFMR LED DR AC/DC CONV 720UH TH |
4,315 | - |
|
Datasheet | WE-FB, MID-OLTI | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | UCC28710 | - | - | - | - | 720µH @ 10kHz | - | - | - | - | Through Hole | 0.615" L x 0.555" W (15.62mm x 14.10mm) | 0.399" (10.13mm) | 0.615" L x 0.555" W (15.62mm x 14.10mm) | - |
|

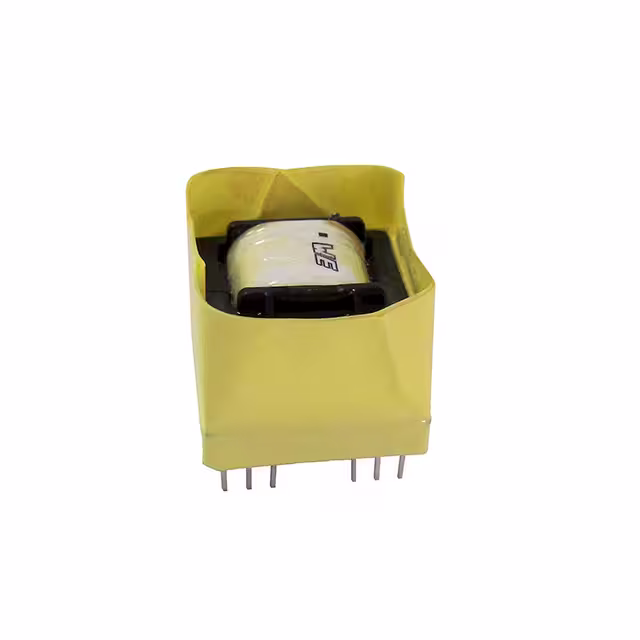

750343107XFMR FLYBACK AC/DC CONV 750UH TH |
2,437 | - |
|
Datasheet | WE-FB, MID-OLDIA | Tray | Active | For AC/DC Converters | Flyback Converters | - | Dialog Semiconductor | 120 ~ 375V | 9V @ 100mA | - | 750µH @ 10kHz | 60kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.748" (19.00mm) | 0.917" L x 1.075" W (23.30mm x 27.30mm) | - |
|

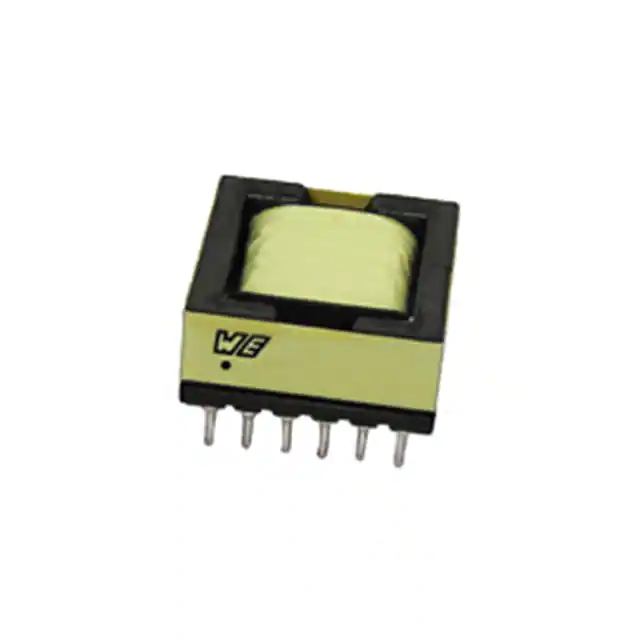

750318302XFMR FLYBACK DC/DC CONV 450UH SM |
4,639 | - |
|
Datasheet | - | Tray | Active | For DC/DC Converters | Flyback Converters | - | Analog Devices, Inc | 120 ~ 375V | - | 3000Vrms | 450µH @ 10kHz | 70kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.299" L x 1.035" W (33.00mm x 26.30mm) | 0.563" (14.30mm) | 1.299" L x 1.035" W (33.00mm x 26.30mm) | - |
|
|
750316413XFMR FLYBACK AC/DC CONV 1.5MH TH |
2,227 | - |
|
Datasheet | MID-OLSTM | Tray | Active | For AC/DC Converters | Flyback Converters | - | STMicroelectronics | 120 ~ 375V | 13V | 1500Vrms | 1.5mH @ 10kHz | 60kHz | -40°C ~ 125°C | - | - | Through Hole | 0.728" L x 0.650" W (18.50mm x 16.50mm) | 0.740" (18.80mm) | - | Laminated Core |
|
|
750817020XFMR FLYBACK 4MH SMD |
2,832 | - |
|
Datasheet | WE-FB, MID-OLLT | Tray | Active | - | Flyback Converters | - | On Semiconductor | - | 12V @ 100mA | - | 4mH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - | Planar |
|
750310042XFMR POE DC/DC CONV TH |
2,230 | - |
|
Datasheet | WE-PoE, MID-POE | Tray | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 30 ~ 57V | 12V | 1875Vrms | - | 250kHz | - | - | - | Through Hole | - | 0.425" (10.80mm) | - | - |
|
|
750811647XFMR FLYBACK AC/DC CONV 250UH TH |
1,746 | - |
|
Datasheet | MID-OLTI | Tray | Active | For AC/DC Converters | Flyback Converters | - | Texas Instruments | 120 ~ 375V | - | 3500Vrms | 250µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 1.024" L x 0.874" W (26.00mm x 22.20mm) | 0.630" (16.00mm) | - | Laminated Core |
|
750318114XFMR FLYBACK DC/DC CONV 6UH SMD |
1,382 | - |
|
Datasheet | WE-AGDT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 18V | - | 4000Vrms | 6µH @ 100kHz | 350kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.445" L x 0.431" W (11.30mm x 10.95mm) | 0.470" (11.94mm) | 0.445" L x 0.431" W (11.30mm x 10.95mm) | - |
Switching Converter, SMPS Transformers FAQ
Common questions about filtering, comparing and sourcing Switching Converter, SMPS Transformers components.
How can I narrow the Switching Converter, SMPS Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Switching Converter, SMPS Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
